Find Out Which Plastic Plumbing System Installs the Fastest
Third-party studies – and even one by a PEX manufacturer – have documented that FlowGuard Gold CPVC installs just as fast or faster than PEX*. Despite the evidence, the perception persists that PEX installs faster.
In this video, you can watch an experienced plumber assemble the exact same section of pipe using the FlowGuard Gold CPVC solvent weld process, PEX expansion fittings, and PEX crimp fittings.
Watch the video to see which plumbing system assembles the fastest. If you’re still skeptical that FlowGuard Gold CPVC can save you time, perform the test yourself. Complete the form to receive an exclusive download for the materials list and assembly diagram.
Short Version (30 sec)
Long Version (4 min 37 sec)
*Read more about third-party studies in our blog post.
Here’s what you’ll need to perform the test yourself, including a materials list and a downloadable assembly diagram.
- 20ft. of 1/2" CPVC and PEX pipe
- 1 small can of one-step solvent cement
- PEX connection tool
- 6 tees
- 8 caps
- 5 elbows (for PEX use bend supports)
- 26 crimp or expansion rings for PEX
- Ratchet cutters
- Ruler or tape measure
- De-burring + chamfering tool

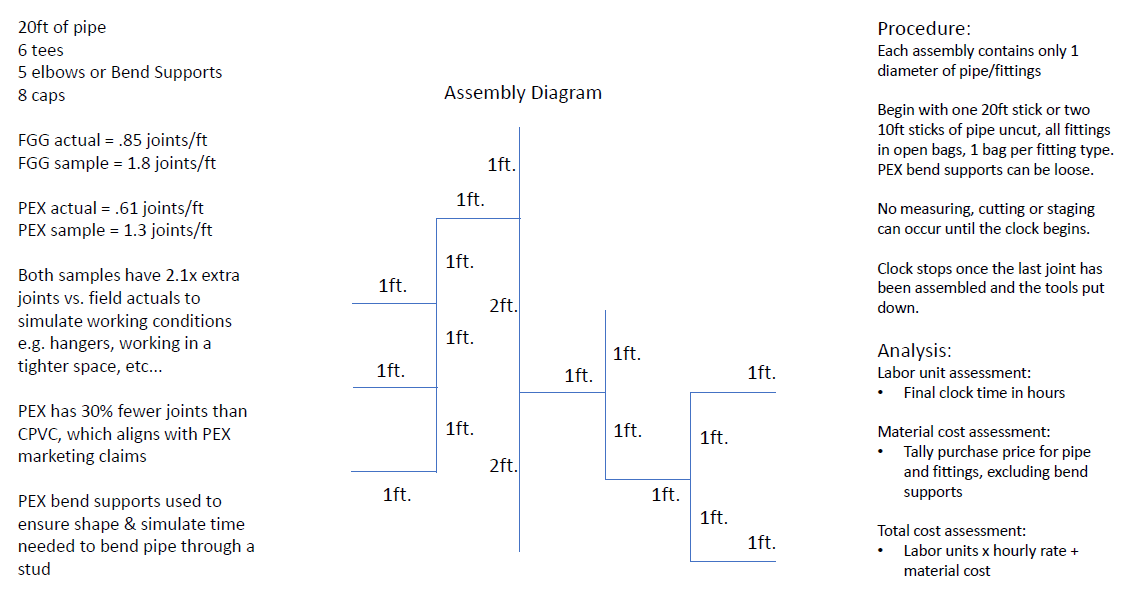

Below you can view a drawing and procedure notes to try the assembly yourself.
Click on the image to enlarge or download.
